Technology and Applications

Why low-ion plasmas? Low ion-plasmas control recombination loss and therefore give significant energy advanges over other plasma for a host of applications such as metallurgical, materials processing, chemical synthesis, heat treatment, controlled high temperature heating, rapid heating for localized or large area processing, and P/M sintering. Plasma use also in electronics, ceramic drying, die heating, heating of coupons for tensile or thermal fatigue testing, microbial cleaning, standardization, brazing, soldering, dental, curing, binder burn off, packaging or sealing, Inert gases nitrogen, argon, and helium heated to 13000C. Please see www.oneatmosphereplasma.com for additional information.

Although fully patented, MHI provides this unique tool in a manner which enables fully flexibility of application. (i.e. without unduly charging or restricting the user for any one specific application).

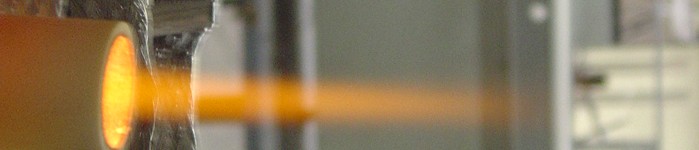

HOT PLASMA STREAM!

Choose Plasma Airtorch™ Models from about a few Watts to 60kW. So many application possibilities!

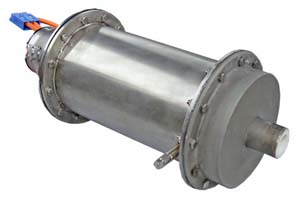

All R&D and production centers should acquire this energy efficient unique plasma tool. (patented product). Model 3kW (plasma) Model 6.5kW (plasma)

Customization

Model	Max. Power, kW	Voltage	Phase	Max. Temp °C (approx)	Maximum Airflow, CFM at max. temp	Control Panel	Overall Dimensions in inches	Fan / Compressed air or gas	Inlet	Exit nozzle	Transformer
PA220MP-3-PV	3.0	208/220/230/240	1	1300	6.3	BPAN-O-2010TM	5" dia. x 17” (Ring 7.0” dia.)	CA or gas	1/2" NPT	1.25” NPT with Id= 3/4"	3 KVA
PA120MP-3-PV	3.0	120	1	1300	6.3	BPAN-O-2010TM	5" dia. x 17” (Ring 7.0” dia.)	CA or gas	1/2" NPT	1.25” NPT with Id= 3/4"	3 KVA
PA220MP-6.5	6.5	208/220/230/240	1	1300	13.7	BPAN-O-Plus-2010TM	7" dia. x 19.6” (Ring 9.0" dia.)	CA or gas	1.5" NPT	Id = 1.5”	call
FPA220MP-6.5	6.5	208/220/230/240	1	1300	13.7	BPAN-O-Plus-2010TM	7" dia. x 24" (Fan 10.0" dia.)	Fan	Fan	Id = 1.5"	call
PA220MP-6.5-PV	6.5	208/220/230/240	1	1300	13.7	BPAN-O-Plus-2010TM	7" dia. x 23” (Ring 9.0" dia.)	CA or gas	1.5” NPT	1.5” NPT with Id= 1.1”	call

Engine parts
Printing on plastic food containers
Energy-efficient window coatings
Safe drinking water
Voice and data communications components
Waste processing
Coatings and films
Electronic computer chips and integrated circuits
Advanced materials (e.g., ceramics)
High-efficiency lighting
Plasma enhanced chemistry
Surface cleaning
Processing of plastics
Gas treatment
Spraying of materials/Nano Crystals
Glass heating and cutting
Aluminum
Chemical analysis
Semiconductor production for computers
Hydrogen
Melting and Vaporization
TVs and electronics
Standard Metallurgical Processing at better efficiencies and ease of use
Microbial reduction

Read Literature: Innovation in Materials Science, Trans Tech Publications, Vol.380 (Key Engineering Materials
ISSN: 1013-9826, ISSN/ISO: Key Engineering Materials eds. JAS and JPD) 2008. http://www.ttp.net/0-87849-389-1.html

Register with us to receive our free brochure - Plasma Applications, Aluminum Supplement.
