DPF Airtorch™ Process Heaters & Air Preheaters
Airtorch™ System Introduction
 |
3kW DPF Airtorch™ |  |
3kW FDPF Airtorch™ |
| 10.5kW DPF Airtorch™ | 10.5kW FDPF Airtorch™ | ||
| 15kW DPF Airtorch™ | 15kW FDPF Airtorch™ | ||
| The DPF Airtorch™ line is a line of highly efficient process air heaters, capable of producing air up to 1200°C/2200°F. Users enjoy accurate temperature control, versatility and quiet and clean operations. DPF Airtorches™ may be used to dry, cure, shrink, seal, braze, anneal and a number of other processes requiring high temperature hot air. Convective heating is the most versatile way of delivering heat as it is not limited by line-of-sight. DPF Airtorches™ deliver heated air/gas up to 1200°C/2200°F when used with a ~70°F inlet gas temperature. Contact MHI for pressure ratings. Which DPF to I need? First asses the power required, then employ the following design criteria for air ~ about 2.6 SCFM/kW of convective heat transfer. Call MHI for confirmation as this an approximate number only. Please adjust power requirement to consider any losses in your delivery piping. DPF Airtorches have 1.5"-2.5" NPT Exit Nozzles, depending on model. The DPF models accept user-provided Blower or Compressor driven air/gas input. Our DPF Airtorch™ line is easily integratable into existing process systems or may be used as a stand alone heater or air preheater. Potential use includes cable conveyors, bucket elevators, screw conveyors and pneumatic systems. Airtorches™ offer flexible layouts, gentle product handling, higher throughput, small footprints and higher energy efficiencies in an enclosed, dust resistant system. Airtorch™ devices can easily be integrated into existing systems. MHI Airtorches offer a wide array of use temperatures and other flexibilities. Please Contact Us or Call 513-772-0404 today! |
|||
3kW DPF
| 3kW DPF Airtorch™ | ||

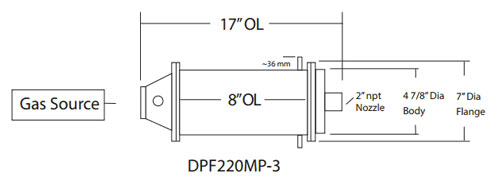

Inlet: 3kW DPF Airtorch™ |
The 3kW Line of DPF Airtorches™ allow for high temperature process heating at moderate flow rates. (Compared to higher powered DPF Airtorch™ Models.) All DPF models feature high efficiencies, easy integration into existing systems and low emissions. Not only can an MHI Airtorch™ improve your process, it can also save you money in the long run. Which DPF to I need? Simple design criteria yields and estimate of about 2.6 SCFM/kW for the high efficiency MHI DPF Airtorches. Please contact MHI for confirmation as this an approximate number only. |
|
| DPF Airtorch™ Benefits Highly Efficient: Saves energy and time while improving your process heating. Cost Effective: Airtorches™ have a quick cost recovery time because of their high efficiency. Dynamic: Operating Temperatures ranging from Ambient to 1200°C/2200°F. Versatile: Accepts air or inert gas as input. Precise: When combined with MHI controls, Airtorches™ offer extraordinary control over processes. Modular: Universal mounting allows for easy integration into existing processes. Quiet: Airtorches™ operate in near silence, helping reduce background noise and improve user ergonomics. Durable: Long life heating elements ensure that your device will have a high operating lifespan. |
||
| Model No. | Power | Controller | Voltage | Integral Fan | Transformer |
| DPF220MP-3 | 3kW | BPAN | 230/240 volts | No | Yes |
| DPF220MP-3 with Fan | 3kW | BPAN-O-2010 + FANCS | 230/240 volts | Yes | Yes |
 |
|||||
For more information, including flow rate tables or detailed specifications, Contact Us Now.
10.5kW DPF
| 10.5kW DPF Airtorch™ | ||
Illustration Only |
|
|
| DPF Airtorch™ Benefits Highly Efficient: Saves energy and time while improving your process heating. Cost Effective: Airtorches™ have a quick cost recovery time because of their high efficiency. Dynamic: Operating Temperatures ranging from Ambient to 1200°C/2200°F. Versatile: Accepts air or inert gas as input. Precise: When combined with MHI controls, Airtorches™ offer extraordinary control over processes. Modular: Universal mounting allows for easy integration into existing processes. Quiet: Airtorches™ operate in near silence, helping reduce background noise and improve user ergonomics. Durable: Long life heating elements ensure that your device will have a high operating lifespan. |
||
| Model No. | Power | Controller | Voltage | Integral Fan | Transformer |
| DPF220MP-10.5 | 10.5kW | HIPAN | 230/240 volts | No | Yes |
| DPF220MP-10.5 with Fan | 10.5kW | HIPAN + FANCS | 230/240 volts | Yes | Yes |
|
|||||
For more information, including flow rate tables or detailed specifications, Contact Us Now.
15kW DPF
| 15kW DPF Airtorch™ | ||
15kW DPF showing exit nozzle (NPT threaded). The control panel XPAN is shown on right. Complete controls are available from MHI.  15kW FDPF showing inlet. User has full control to provide air/gas with blower/compressor or use with fan shown on the right. Use with fan has restrictions with allowable head pressure. |
New Models are fully flanged and sealed as shown on left. Models may be used with XPAN Controllers in single phase mode or three phase controls as displayed on Control Panel page .
XPAN Control System. Other controls may be viewed on Control Panel page.
|
|
DPF Airtorch™ Benefits |
||
| Model No. | Power | Controller | Voltage | Integral Fan | Transformer |
| DPF220MP-15 | 15kW | XPAN | 208/230/240 volts | No | Yes |
| DPF220MP-15 with Fan | 15kW | XPAN + FANCS | 208/230/240 volts | Yes | Yes |
|
|||||
For more information, including flow rate tables or detailed specifications, Contact Us Now.
Applications
DPF Airtorch™ Suggested Applications
| DPF Airtorch™ Suggested Applications | |
| Sintering |
Debonding |
| Drying |
Fusing |
| Curing |
Hot Gas |
| Heat Treating |
Joining |
| Gas Preheating | Air Preheating |
| Process Heating | Brazing |
Electronic Controls
Electronic Controls
MHI's DPF Airtorches™ are compatible with our electronic control panels and DACS software. Standard features include overtemperature controls and programmable steps. In addition to standard electronic controls, MHI DACS allows for remote furnace monitoring, data logging and intricate step programming.
| MHI Airtorch™ Controls | |
| Many of MHI's electronic furnace controllers feature multiple voltage inputs, overtemperature controls, programmable cycles and a number of other features. For more information about MHI's control panels, Contact Us or See More Information. |  |
 |
|
| MHI Data Acquisition and Control Software (MHI DACS) | |
| MHI devices are compatible with MHI DACS for furnace controls, step programming, data logging and more. DACS also allows for remote furnace control, allowing one central location to control multiple devices. |  MHI DACS Software |
|
|
Accessories
Accessories
Airtorch™
Heater Accessories |
|||||||||
 |
NPT Nozzle with fitting for pipe extension | ||||||||
 |
FS750-A - Adjustable flow rate detection valve and switch | ||||||||
| New | FS750 - Flow rate detection valve and switch | ||||||||
 |
FLM750 - Flowmeter 2-23 SCFM (click for larger images) | ||||||||
 |
FTB750-6 - 6' Air/gas supply tubing | ||||||||
 |
MTAR - Moisture trap ensures dry air to AirtorchTM | ||||||||
Electrically Heated and Controlled
Hot Air/Gas Device Generators.
Models are rated by kW. Several options are offered to users. Please contact MHI to discuss your requirements.
Full Line of Controls available
Please contact MHI to design the best solution for your application.
