GTA MODELS  (High Pressure)
* Air, inert, and combustible gas ready *

Shown below is the typical configuration for a 60kW GTA

GTA

         inlet cold                                   outlet hot


  GTA is ideal for demanding high pressure applications such as:

  • high pressure engine sensors and exhaust  (for atmospheric pressure use AT or LTA)
  • jet engine test stands
  • reactors (industrial preheating)


GTA
GTA with water-cooling jacket

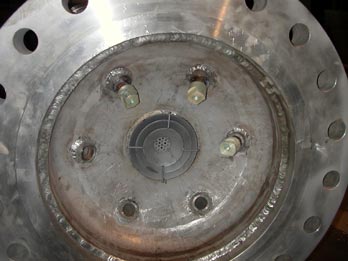

inside door of GTA

HIGH PRESSURE GTA MODELS
Model Number
Power
Maximum Temperature
GTA 750-12
12 kW
850°C
GTA 750-24
24 kW
850°C
GTA 750-36
36 kW
850°C
GTA 750-48
48 kW
850°C
GTA 750-60
60 kW
850°C
GTA 750-144
144kW
850°C
GTA 750-600
600kW
850°C

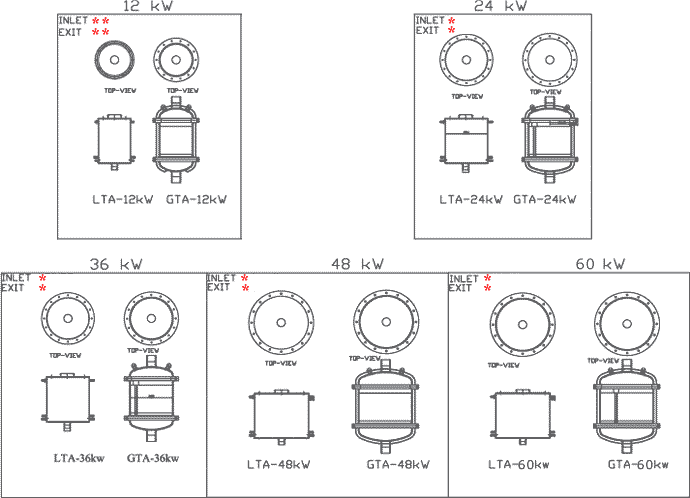

GTA models are rated for high pressure

LTA models accept only about 1 bar of pressure (for LTA models click here)


  * Flanged 4" diameter pipe
** Flanged 3" diameter pipe

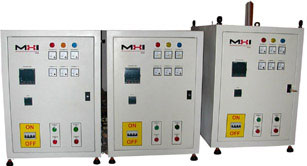

TRIPAN

RPAN3 (3 units shown)

Call 513-772-0404 to discuss or email us.
